FOUR MODULE GUNS

PROBILT™ HOT MELT FOUR MODULE DISPENSING GUN HEADS

The ProBilt™ Series hot melt glue guns are available in a variety of styles for adhesive dispensing. These four module automatic glue guns have been designed to handle a wide range of low, medium, or high speed hot melt applications. State of the art engineering ensures superior durability, extended service life, and uncompromising performance to meet the operational demands of today’s manufacturing.

All applicator gun heads are an air-open, spring-close operation that when coupled with a performance matched solenoid, can deliver speeds of over 3000 cycles per minute. A factory-set piston stroke and unique seat design provides a consistent glue pattern and precise cutoff, eliminating the need for operator adjustment.

H204T .88″ CTRS

H204T .88″x1.50″x.88″ CTRS

H204T 1.00″ CTRS

H204T .88″x2.25″x.88″ CTRS

Benefits:
  • All guns are equipped with electrical “quick” disconnects for a fast plug and run installation.
  • The use of RTD sensors for precise temperature control.
  • A slim profile that allows for greater installation flexibility.
  • High strength aluminum manifolds and stainless-steel covers for easy cleaning and unequaled durability.
  • Larger diameter heater for extended service life.



Specifications:

Maximum Operating Temperature:  450 °F (232 °C)

Operating Air Pressure:  45 – 80 psi (3.1 – 5.5 bar)

Electrical Specifications:  240 VAC, 50/60 Hz

Maximum Working Hydraulic Pressure:  1500 psi (103 bar)

Operating Speed:  Exceeds 3000 cycles per minute

Sensor: 120 ohm Nickel

.88" CTRS CLASSIC

H204T-88-H200-C
H204T Applicator Gun Head .88 Inch Centers – H200 Module (AO/SC)

STANDARD ITEM# 39441
WASHDOWN ITEM# 89450

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: 714486

.88" CTRS REDUCED CAVITY

H204T-88-RC
H204T Applicator Gun Head .88 Inch Centers – Reduced Cavity Module .008 (AO/SC)

STANDARD ITEM# 39447
WASHDOWN ITEM# 89451

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: 145764

H204T Applicator Gun Head .88 Inch Centers – Reduced Cavity Module .012 (AO/SC)

H204T Applicator Gun Head .88 Inch Centers – Reduced Cavity Module .012 (AO/SC)

STANDARD ITEM# 39448
WASHDOWN ITEM# 89452

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: 129812

H204T Applicator Gun Head .88 Inch Centers – Reduced Cavity Module .016 (AO/SC)

H204T Applicator Gun Head .88 Inch Centers – Reduced Cavity Module .016 (AO/SC)

STANDARD ITEM# 39449
WASHDOWN ITEM# 89453

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: 145765

H204T Applicator Gun Head .88 Inch Centers – Reduced Cavity Module .020 (AO/SC)

H204T Applicator Gun Head .88 Inch Centers – Reduced Cavity Module .020 (AO/SC)

STANDARD ITEM# 39450
WASHDOWN ITEM# 89454

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: 145766

.88" CTRS ZERO CAVITY

H204T-88-ZC-MA
H204T Applicator Gun Head .88 Inch Centers – Zero Cavity Module .008 E-Z Micro Adjust (AO/SC)

STANDARD ITEM# 39459
WASHDOWN ITEM# 89455

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: 116931

H204T Applicator Gun Head .88 Inch Centers – Zero Cavity Module .012 E-Z Micro Adjust (AO/SC)

H204T Applicator Gun Head .88 Inch Centers – Zero Cavity Module .012 E-Z Micro Adjust (AO/SC)

STANDARD ITEM# 39460
WASHDOWN ITEM# 89456

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: 107332

H204T Applicator Gun Head .88 Inch Centers – Zero Cavity Module .016 E-Z Micro Adjust (AO/SC)

H204T Applicator Gun Head .88 Inch Centers – Zero Cavity Module .016 E-Z Micro Adjust (AO/SC)

STANDARD ITEM# 39461
WASHDOWN ITEM# 89457

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: 121135

H204T Applicator Gun Head .88 Inch Centers – Zero Cavity Module .020 E-Z Micro Adjust (AO/SC)

H204T Applicator Gun Head .88 Inch Centers – Zero Cavity Module .020 E-Z Micro Adjust (AO/SC)

STANDARD ITEM# 39462
WASHDOWN ITEM# 89458

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: Universal Systems SE Exclusive

H204T-88-ZCS12
H204T Applicator Gun Head .88 Inch Centers – Zero Cavity Module .012 Case Sealer (AO/SC)

STANDARD ITEM# 39468
WASHDOWN ITEM# 89459

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: 118545

1.00" CTRS CLASSIC

H204T-100-H200-C
H204T Applicator Gun Head 1.00 Inch Centers – H200 Module (AO/SC)

STANDARD ITEM# 89419
WASHDOWN ITEM# 89460

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: Universal Systems SE Exclusive

1.00" CTRS REDUCED CAVITY

H204T-100-RC
H204T Applicator Gun Head 1.00 Inch Centers – Reduced Cavity Module .008 (AO/SC)

STANDARD ITEM# 89425
WASHDOWN ITEM# 89461

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: Universal Systems SE Exclusive

H204T Applicator Gun Head 1.00 Inch Centers – Reduced Cavity Module .012 (AO/SC)

H204T Applicator Gun Head 1.00 Inch Centers – Reduced Cavity Module .012 (AO/SC)

STANDARD ITEM# 89426
WASHDOWN ITEM# 89462

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: Universal Systems SE Exclusive

H204T Applicator Gun Head 1.00 Inch Centers – Reduced Cavity Module .016 (AO/SC)

H204T Applicator Gun Head 1.00 Inch Centers – Reduced Cavity Module .016 (AO/SC)

STANDARD ITEM# 89427
WASHDOWN ITEM# 89463

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: Universal Systems SE Exclusive

H204T Applicator Gun Head 1.00 Inch Centers – Reduced Cavity Module .020 (AO/SC)

H204T Applicator Gun Head 1.00 Inch Centers – Reduced Cavity Module .020 (AO/SC)

STANDARD ITEM# 89428
WASHDOWN ITEM# 89464

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: Universal Systems SE Exclusive

1.00" CTRS ZERO CAVITY

H204T-100-ZC-MA
H204T Applicator Gun Head 1.00 Inch Centers – Zero Cavity Module .008 E-Z Micro Adjust (AO/SC)

STANDARD ITEM# 89437
WASHDOWN ITEM# 89465

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: Universal Systems SE Exclusive

H204T Applicator Gun Head 1.00 Inch Centers – Zero Cavity Module .012 E-Z Micro Adjust (AO/SC)

H204T Applicator Gun Head 1.00 Inch Centers – Zero Cavity Module .012 E-Z Micro Adjust (AO/SC)

STANDARD ITEM# 89438
WASHDOWN ITEM# 89466

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: Universal Systems SE Exclusive

H204T Applicator Gun Head 1.00 Inch Centers – Zero Cavity Module .016 E-Z Micro Adjust (AO/SC)

H204T Applicator Gun Head 1.00 Inch Centers – Zero Cavity Module .016 E-Z Micro Adjust (AO/SC)

STANDARD ITEM# 89439
WASHDOWN ITEM# 89467

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: Universal Systems SE Exclusive

H204T Applicator Gun Head 1.00 Inch Centers – Zero Cavity Module .020 E-Z Micro Adjust (AO/SC)

H204T Applicator Gun Head 1.00 Inch Centers – Zero Cavity Module .020 E-Z Micro Adjust (AO/SC)

STANDARD ITEM# 89440
WASHDOWN ITEM# 89468

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: Universal Systems SE Exclusive

H204T-100-ZCS12
H204T Applicator Gun Head 1.00 Inch Centers – Zero Cavity Module .012 Case Sealer (AO/SC)

STANDARD ITEM# 89446
WASHDOWN ITEM# 89469

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: Universal Systems SE Exclusive

.88"x1.50"x.88" CTRS CLASSIC

H204T-88x150x88-H200-C
H204T Applicator Gun Head .88 x 1.50 x .88 Inch Centers – H200 Module (AO/SC)

STANDARD ITEM# 39401
WASHDOWN ITEM# 39403

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: 274600, 276600, 8504840, 8504844, 8505278, 276775,8505925

.88"x1.50"x.88" CTRS RC

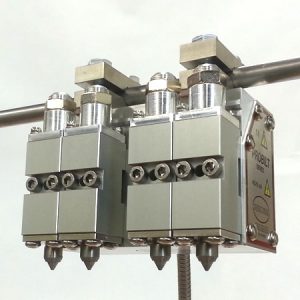

H204T-88x150x88-RC
H204T Applicator Gun Head .88 x 1.50 x .88 Inch Centers – Reduced Cavity Module .008 (AO/SC)

STANDARD ITEM# 39408
WASHDOWN ITEM# 39416

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: 126404, 126416

H204T Applicator Gun Head .88 x 1.50 x .88 Inch Centers – Reduced Cavity Module .012 (AO/SC)

H204T Applicator Gun Head .88 x 1.50 x .88 Inch Centers – Reduced Cavity Module .012 (AO/SC)

STANDARD ITEM# 39409
WASHDOWN ITEM# 39417

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: 126405, 8505952, 126417

H204T Applicator Gun Head .88 x 1.50 x .88 Inch Centers – Reduced Cavity Module .016 (AO/SC)

H204T Applicator Gun Head .88 x 1.50 x .88 Inch Centers – Reduced Cavity Module .016 (AO/SC)

STANDARD ITEM# 39410
WASHDOWN ITEM# 39418

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: 126406, 126418

H204T Applicator Gun Head .88 x 1.50 x .88 Inch Centers – Reduced Cavity Module .020 (AO/SC)

H204T Applicator Gun Head .88 x 1.50 x .88 Inch Centers – Reduced Cavity Module .020 (AO/SC)

STANDARD ITEM# 39411
WASHDOWN ITEM# 39419

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: 126407, 126419

.88"x1.50"x.88" CTRS ZC

H204T-88x150x88-ZC-MA
H204T Applicator Gun Head .88 x 1.50 x .88 Inch Centers – Zero Cavity Module .008 E-Z Micro Adjust (AO/SC)

STANDARD ITEM# 39424
WASHDOWN ITEM# 39432

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: 103229, 103600

H204T Applicator Gun Head .88 x 1.50 x .88 Inch Centers – Zero Cavity Module .012 E-Z Micro Adjust (AO/SC)

H204T Applicator Gun Head .88 x 1.50 x .88 Inch Centers – Zero Cavity Module .012 E-Z Micro Adjust (AO/SC)

STANDARD ITEM# 39425
WASHDOWN ITEM# 39433

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: 810114,103601

H204T Applicator Gun Head .88 x 1.50 x .88 Inch Centers – Zero Cavity Module .016 E-Z Micro Adjust (AO/SC)

H204T Applicator Gun Head .88 x 1.50 x .88 Inch Centers – Zero Cavity Module .016 E-Z Micro Adjust (AO/SC)

STANDARD ITEM# 39426
WASHDOWN ITEM# 39434

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: 809921,103602

H204T Applicator Gun Head .88 x 1.50 x .88 Inch Centers – Zero Cavity Module .020 E-Z Micro Adjust (AO/SC)

H204T Applicator Gun Head .88 x 1.50 x .88 Inch Centers – Zero Cavity Module .020 E-Z Micro Adjust (AO/SC)

STANDARD ITEM# 39427
WASHDOWN ITEM# 39435

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: 103230, 103603

H204T-88x150x88-ZCS12
H204T Applicator Gun Head .88 x 1.50 x .88 Inch Centers – Zero Cavity Module .012 Case Sealer (AO/SC)

STANDARD ITEM# 39437
WASHDOWN ITEM# 39439

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: 109612, 117980

.88"x2.25"x.88" CTRS CLASSIC

H204T-88x225x88-H200-C
H204T Applicator Gun Head .88 x 2.25 x .88 Inch Centers – H200 Module (AO/SC)

STANDARD ITEM# 39486
WASHDOWN ITEM# 89470

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: Universal Systems SE Exclusive

.88"x2.25"x.88" CTRS RC

H204T-88x225x88-RC
H204T Applicator Gun Head .88 x 2.25 x .88 Inch Centers – Reduced Cavity Module .008 (AO/SC)

STANDARD ITEM# 39492
WASHDOWN ITEM# 89471

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: Universal Systems SE Exclusive

H204T Applicator Gun Head .88 x 2.25 x .88 Inch Centers – Reduced Cavity Module .012 (AO/SC)

H204T Applicator Gun Head .88 x 2.25 x .88 Inch Centers – Reduced Cavity Module .012 (AO/SC)

STANDARD ITEM# 39493
WASHDOWN ITEM# 89472

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: Universal Systems SE Exclusive

H204T Applicator Gun Head .88 x 2.25 x .88 Inch Centers – Reduced Cavity Module .016 (AO/SC)

H204T Applicator Gun Head .88 x 2.25 x .88 Inch Centers – Reduced Cavity Module .016 (AO/SC)

STANDARD ITEM# 39494
WASHDOWN ITEM# 89473

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: Universal Systems SE Exclusive

H204T Applicator Gun Head .88 x 2.25 x .88 Inch Centers – Reduced Cavity Module .020 (AO/SC)

H204T Applicator Gun Head .88 x 2.25 x .88 Inch Centers – Reduced Cavity Module .020 (AO/SC)

STANDARD ITEM# 39495
WASHDOWN ITEM# 89474

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: Universal Systems SE Exclusive

.88"x2.25"x.88" CTRS ZC

H204T-88x225x88-ZC-MA
H204T Applicator Gun Head .88 x 2.25 x .88 Inch Centers – Zero Cavity Module .008 E-Z Micro Adjust (AO/SC)

STANDARD ITEM# 89404
WASHDOWN ITEM# 89475

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: Universal Systems SE Exclusive

H204T Applicator Gun Head .88 x 2.25 x .88 Inch Centers – Zero Cavity Module .012 E-Z Micro Adjust (AO/SC)

H204T Applicator Gun Head .88 x 2.25 x .88 Inch Centers – Zero Cavity Module .012 E-Z Micro Adjust (AO/SC)

STANDARD ITEM# 89405
WASHDOWN ITEM# 89476

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: Universal Systems SE Exclusive

H204T Applicator Gun Head .88 x 2.25 x .88 Inch Centers – Zero Cavity Module .016 E-Z Micro Adjust (AO/SC)

H204T Applicator Gun Head .88 x 2.25 x .88 Inch Centers – Zero Cavity Module .016 E-Z Micro Adjust (AO/SC)

STANDARD ITEM# 89406
WASHDOWN ITEM# 89477

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: Universal Systems SE Exclusive

H204T Applicator Gun Head .88 x 2.25 x .88 Inch Centers – Zero Cavity Module .020 E-Z Micro Adjust (AO/SC)

H204T Applicator Gun Head .88 x 2.25 x .88 Inch Centers – Zero Cavity Module .020 E-Z Micro Adjust (AO/SC)

STANDARD ITEM# 89407
WASHDOWN ITEM# 89478

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: Universal Systems SE Exclusive

H204T-88x225x88-ZCS12
H204T Applicator Gun Head .88 x 2.25 x .88 Inch Centers – Zero Cavity Module .012 Case Sealer (AO/SC)

STANDARD ITEM# 89408
WASHDOWN ITEM# 89479

240V, 120 OHM NICKEL RTD SENSOR, COMMON AIR

OEM Cross Reference: Universal Systems SE Exclusive

GUN MANIFOLD ASSEMBLIES

H204T Manifold Assembly .88 inch CTRS (Modules Not Included)

STANDARD ITEM# 39950MA

204 PROBILT SERIES MANIFOLD ASSEMBLY, .88 INCH CENTERS

OEM Cross Reference: Universal Systems SE Exclusive

H204T Manifold Assembly 1.00 inch CTRS (Modules Not Included)

H204T Manifold Assembly 1.00 inch CTRS (Modules Not Included)

STANDARD ITEM# 39953MA

204 PROBILT SERIES MANIFOLD ASSEMBLY, 1.00 INCH CENTERS

OEM Cross Reference: Universal Systems SE Exclusive

H204T Manifold Assembly .88 x 1.5 x .88 inch CTRS (Modules Not Included)

H204T Manifold Assembly .88 x 1.5 x .88 inch CTRS (Modules Not Included)

STANDARD ITEM# 39951MA

204 PROBILT SERIES MANIFOLD ASSEMBLY, .88 x 1.5 x .88 INCH CENTERS

OEM Cross Reference: Universal Systems SE Exclusive

H204T Manifold Assembly .88 x 2.25 x .88 inch CTRS (Modules Not Included)

H204T Manifold Assembly .88 x 2.25 x .88 inch CTRS (Modules Not Included)

STANDARD ITEM# 39960MA

204 PROBILT SERIES MANIFOLD ASSEMBLY, .88 x 2.25 x .88 INCH CENTERS

OEM Cross Reference: Universal Systems SE Exclusive
